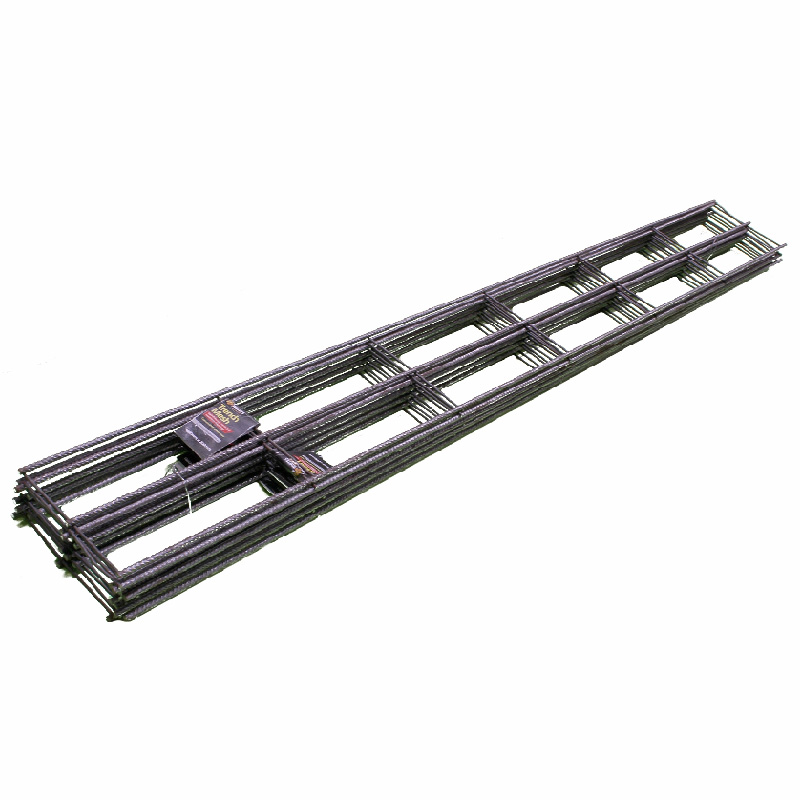

Trench Rib Mesh
Trench Mesh is made specifically for use in residential footing trenches.
- Made from grade D500L ribbed reinforcing wire, Trench Mesh is made using a variety of longitudinal wires up to 12mm diameter.
- Cross wires are at 300mm centres. Sheets are made in 6m lengths, with widths varying from depending on the number of longitudinal wires. The longitudinal wires are at 100mm centres.
- The product code, for example L8TM3, refers to the ductility grade (L), diameter of main wires (8) and the number of main wires (3).
| REFERENCE | MAIN WIRE mm | CROSS WIRE mm | WIDTH metres | LENGTH metres | MASS kg |
|---|---|---|---|---|---|
| L08TM3W | 7.60@100 | 4.00@300 | 0.2 | 6 | 7 |
| L08TM4W | 7.60@100 | 4.00@300 | 0.3 | 6 | 9 |
| L08TM5W | 7.60@100 | 4.00@300 | 0.4 | 6 | 12 |
| L11TM3W | 10.65@100 | 4.75@300 | 0.2 | 6 | 13 |
| L11TM4W | 10.65@100 | 4.75@300 | 0.3 | 6 | 18 |
| L11TM5W | 10.65@100 | 4.75@300 | 0.3 | 6 | 21 |
| L12TM3W | 11.90@100 | 4.75@300 | 0.2 | 6 | 16 |
| L12TM4W | 11.90@100 | 4.75@300 | 0.3 | 6 | 22 |
| L12TM5W | 11.90@100 | 4.75@300 | 0.4 | 6 | 27 |
